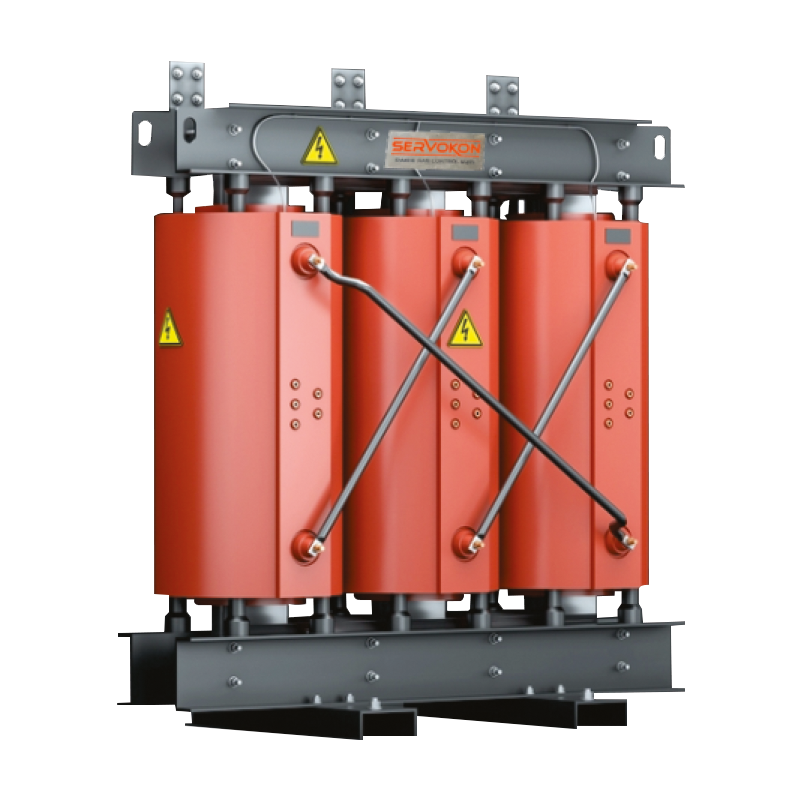

DRY TYPE TRANSFORMER

₹0.00

Cast Resin : Cast Resin dry type transformer is a transformer that does not use liquid as insulation for its winding or core. Instead the windings and core are kept within a sealed cast epoxy resin.

VPI : A vacuum pressure impregnated dry type transformer has an iron core, vacuum pressure resin impregnated high voltage windings and low voltage windings. The low voltage winding is constructed with conductors.

Add to cart

Buy Now

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “DRY TYPE TRANSFORMER”

Category: Transformers

Product Description

DRY TYPE TRANSFORMER

DRY TYPE OF TRANSFORMER HAS SOME FEATURED ADVANTAGES

Health & Safety

Hardly inflammable, self extinguishing

Extremely low content of burnable material

Highly moisture-proof

No content of any halogen, silicones, nitrogen in the insulation

No pollution to the environment

Free from all restrictions that apply oil type transformers

Flexibility & Cost Saving

Minimum maintenance is required

Installation close to the center of major consumers

No liquids used ; no risk for leakage

Reduce cable costs, transmission losses and installation costs

Repair Possibilities (at site)

Health & safety

Cooling is the most efficient ( up to 40% )

Excellent insulation level, short circuit and lightning Impulse

Low partial discharge, therefore, high life expectancy.

Ability to handle greater short time overloads rather than oil type

Range We Offer

Capacity	From 100 KVA to 4 MVA
Voltage Class	1.1kV, 2.2kV, 3.3kV, 6.6kV, 6.9kV, 11kV, 12.47kV, 13.2kV 13.8kV, 15kV, 22kV, 25kV, 33kV, 34.5kV (Any Special Customised Class as per requirement)
Low Voltage	380 V, 400 V, 415 V, 433 V, 440 V & 600 V (Any Special Customised Class as per requirement)
Cooling	AN, ANAF
Tap Changer	OCTC & OLTC
