Product Description

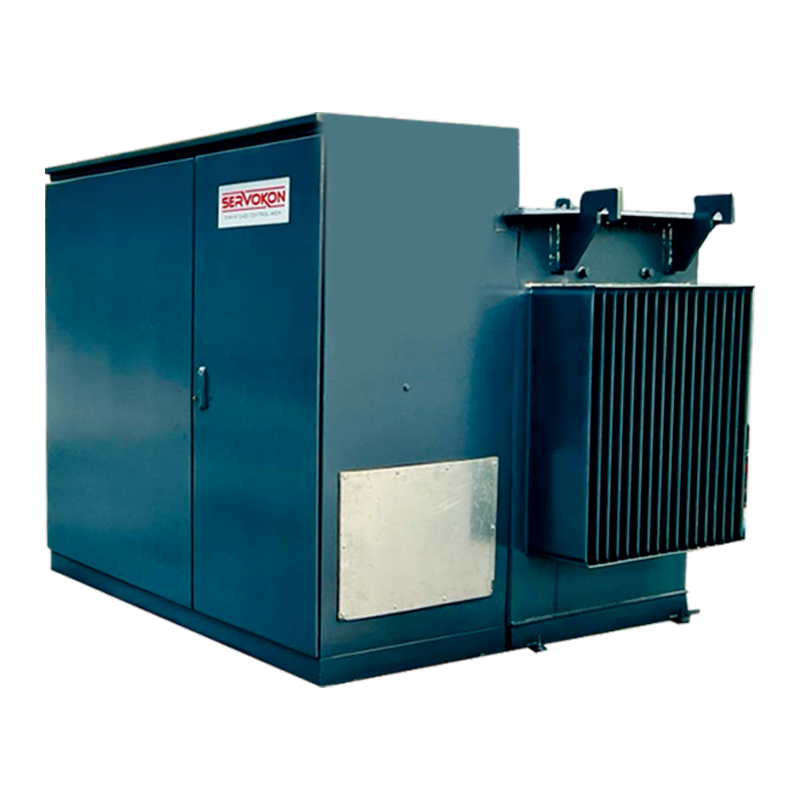

PAD MOUNTED TRANSFORMERS

teczhar offers a complete line of liquid-filled Three Phase Pad-Mounted distribution transformers that meet applicable ANSI®/IEEE® standards specially designed for Europeon & US Market.

With high voltages up to 34.5 kV and ratings up to 5,000 kVA (ONAN), Servokon compartmental-type Three Phase Pad-Mounted Commercial Transformers are designed for outdoor installation on a concrete pad and provide underground power distribution to commercial, industrial and institutional loads. High-grade materials, combined with sophisticated engineering design systems, are key elements of a transformer that will deliver years of highly reliable service.

FEATURES

60 Hz operation.

Transformer tank welded from cover to base.

65°C average winding rise.

Permanent nameplate.

Radial & loop feed arrangements.

One-inch drain valve and sampler

Dead and live front type of HV terminals.

Automatic pressure-relief valve

Plug-in type HV bushing

Tap changer with (2) 2.5% full capacity taps above and below nominal.

HV BIL 45- 150 kV (Dead Front) 200 KV (Live Front).

Painted olive-green color or as per Customer requirement.

LV BIL 30-60 KV.

Designed, manufactured and tested in accordance with the latest ANSI/IEEE standards.

Three-point latching of low-voltage door.

High-voltage door, which can be opened only after the low-voltage door is opened.

Rigid steel partition.

Range We Offer



Capacity From 100 KVA to 5000 KVA
Voltage Class 12.47 kv, 13.2kV, 13.8kV, 34.5kV (Any Special Customised Class as per requirement)
Low Voltage 380 V, 400 V, 415 V, 433 V, 440 V, 600 V & 690 V (Any Special Customised Class as per requirement)
Cooling ONAN
