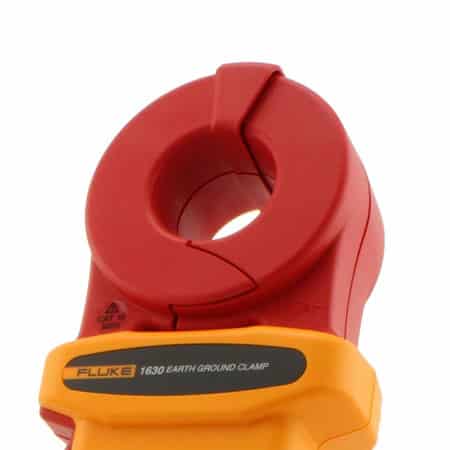

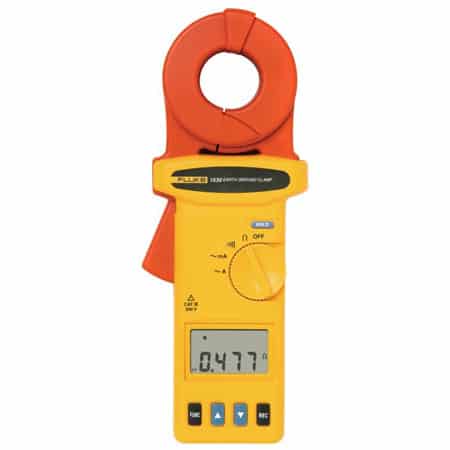

FLUKE 1630 FC EARTH GROUND CLAMP

0 customer reviews Sold: 0
View details

₹0.00

Key Features

  • Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes.
  • AC Leakage Current Measurement: Identify AC leakage without disconnecting your earth ground stake from the grounding system
  • Rugged: Heavy-duty clamp jaw stays in alignment and calibration on tough jobsites
  • Logging measurement: Saves up to 32,760 measurements in memory

₹0.00

Wishlist
Add to cart
Buy Now
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “FLUKE 1630 FC EARTH GROUND CLAMP”

Your email address will not be published. Required fields are marked *

Category:

Product Description

SPECIFICATIONS FLUKE 1630 FC EARTH GROUND CLAMP

Maximum voltage to earth ground: 1000 V

Battery type : AA alkaline IEC/EN LR6 (x4)

Battery life: More than 15 hours*

* In Ground Resistance measurement mode, with backlight turned off, and RF mode turned off

Frequency range: 40 Hz to 1 kHz

Ingress protection: IEC/EN 60529: IP30 with jaw closed

LCD: Digital reading   9999 counts

Refresh rate: 4 per second

Operating temperature: -10 °C to + 50 °C

Storage temperature:     -20 °C to + 60 °C

Operating humidity :

Non condensing (<10 °C) (< 50 °F)

≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F])

≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F])

≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F])

(Non condensing)

Operating altitude:  2000 m (6561 feet)

Storage altitude: 12 000 m (39,370 feet)

Reference temperature: 23 °C ±5 °C (73 °F ±9 °F)

Temperature coefficient: 0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F])

Overload indication: OL

Data logging capacity: Minimum of 32,760 measurements

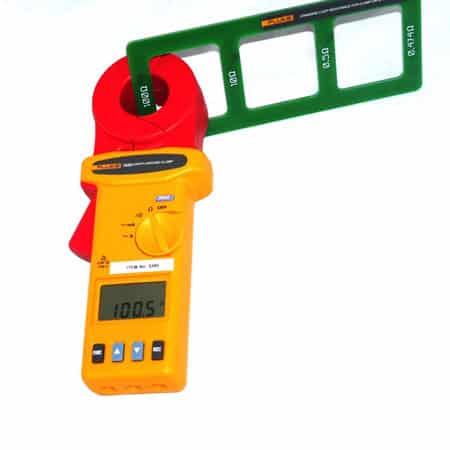

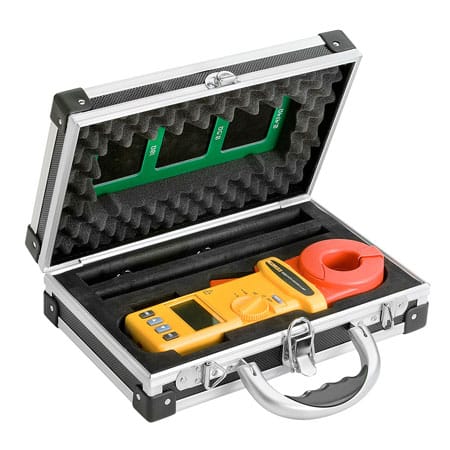

Display reading specification with standard loop resistance

+ Input (Ω): 0.474

Minimum: 0.417

Maximum: 0.531

+ Input (Ω): 0.5

Minimum: 0.443

Maximum: 0.558

+ Input (Ω): 10

Minimum: 9.55

Maximum: 10.45

+ Input (Ω): 100

Minimum: 96

Maximum: 104

Safety

General:

IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1

Measurement:

IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V

Current clamp for leakage current measurements

IEC/EN 61557-13: Class 2, ≤30 A/m

Resistance to earth: IEC/EN 61557-5

Effectiveness of thepProtective measures: IEC/EN 61557-16

Electromagnetic compatibility (EMC)

International

  • IEC/EN 61326-1: Portable Electromagnetic Environment
  • CISPR 11: Group 1, Class B, IEC/EN 61326-2-2

Korea (KCC)

Class A equipment (Industrial Broadcast & Communications Equipment)

USA (FCC)

47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103

Wireless Radio

Frequency range: 2412 MHz to 2462 MHz

Output power: <10 mW

Radio frequency certification: FCC ID:T68-FBLE IC:6627A-FBLE

General Specifications

Conductor size: 40 mm (1.57 in) approximately

Dimensions (L x W x H): 283 x 105 x 48 mm (11.1 x 4.1 x 1.9 in)

Weight: 880g (31 oz)

Earth Ground Loop Resistance

+ Range: 0.025 Ω to 0.249 Ω

Accuracy1  ± (% of reading + Ω): 1.5% + 0.02 Ω

+ Range: 0.250 Ω to 0.999 Ω

Accuracy1  ± (% of reading + Ω): 1.5% + 0.05 Ω

+ Range: 1.000 Ω to 9.999 Ω

Accuracy1  ± (% of reading + Ω): 1.5% + 0.10 Ω

+ Range: 10.00 Ω to 49.99 Ω

Accuracy1  ± (% of reading + Ω): 1.5% + 0.30 Ω

+ Range: 50.00 Ω to 99.99 Ω

Accuracy1  ± (% of reading + Ω): 1.5% + 0.50 Ω

+ Range: 100.0 Ω to 199.9 Ω

Accuracy1  ± (% of reading + Ω): 3.0% + 1.0 Ω

+ Range: 200.0 Ω to 399.9 Ω

Accuracy1  ± (% of reading + Ω): 5.0% + 5.0 Ω

+ Range: 400 Ω to 599 Ω

Accuracy1  ± (% of reading + Ω): 10.0% + 10 Ω

+ Range: 600 Ω to 1500 Ω

Accuracy1  ± (% of reading + Ω): 20.00%

1  Loop resistance with no inductance, conductor centered and perpendicular to jaw

Earth ground leakage current mA

Autorange 50/60 Hz, True rms, crest factor CF ≤3

+ Range: 0.200 mA to 3.999 mA

Resolution: 1 μA

Accuracy1  ± (% of reading + mA): 2.0% + 0.05 mA

+ Range: 4.00 mA to 39.99 mA

Resolution: 10 μA

Accuracy1  ± (% of reading + mA): 2.0% + 0.03 mA

+ Range: 40.0 mA to 399.9 mA

Resolution: 100 μA

Accuracy1  ± (% of reading + mA): 2.0% + 0.3 mA

+ Range: 0.400 A to 3.999 A

Resolution: 1 mA

Accuracy1  ± (% of reading + mA): 2.0% + 3 mA

+ Range: 4.00 A to 39.99 A

Resolution: 10 mA

Accuracy1  ± (% of reading + mA): 2.0% + 30 mA

1 Applies to signal frequency

  • 40 Hz to 1 kHz with filter set to OFF
  • 40 Hz to 70 Hz with filter se to ON

Introduction Fluke 1630 FC Earth Ground Clamp

The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don’t have access to soil to place auxiliary test stakes.

Earth ground ac leakage current measurement

– Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting.
– Rugged heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments.

Logging measurements

– The earth ground clamp saves time by automatically recording data at pre-set intervals
– Saves up to 32,760 measurements in memory at the set logging interval.
– Saves time by recording and storing measured values.
