Product Description

SPECIFICATIONS: FLUKE 233 DIGITAL MULTIMETER WITH REMOTE DISPLAY

Accuracy specifications

+ DC Voltage

Range: 0.1 mV to 1000 V

Accuracy: 0.25% + 2

+ AC voltage

Range: 0.1 mV to 1000 V

Accuracy: 1.0% + 3

+ DC current

Range: 1 mA to 10 A

Accuracy: 1.0% + 3

+ AC current

Range: 1 mA to 10 A

Accuracy: 1.5% + 3

+ Resistance

Range: 0.1 Ω to 40 MΩ

+ Capacitance

Range: 1 nF to 9999 μF

Resolution: 1nF

+ Frequency

Range: 5 Hz to 50 kHz

Resolution: 0.01 Hz

+ Counts: 6000

+ Temperature: -40°C to +400°C

+ Power: AA batteries: Three for main body two for display

+ Battery life: 400 hours

+ Wireless frequency: 2.4 GHz ISM Band 10 meter range

+ Safety rating: CAT IV 600 V , CAT III 1000 V

General specifications

– Basic features

AC true-rms: Yes

Ranging: Auto/manual

– Display:

Backlight: Yes

– Data storage:

Min/Max/Avg: Yes

– Other features

Battery type: AA alkaline

Removable display: Yes

– Warranty and protection

Safety rating: CAT IV 600 V/CAT III 1000 V

External protection: Rubber overmold

Warranty: Three-years

Size (H x W x L): 5.3 x 9.3 x 19.3 cm (2.08 x 3.6 x 7.6 in)

Weight: 604 g (1.3 Ib)

Introduction Fluke 233 Digital Multimeter

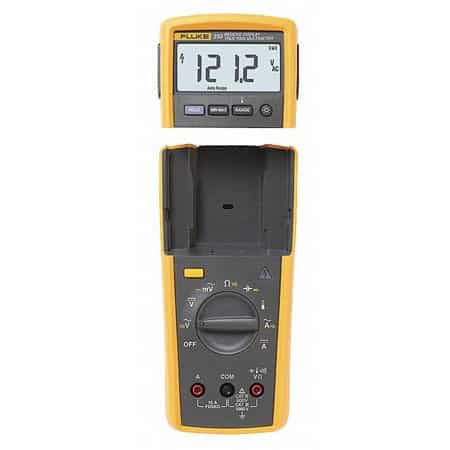

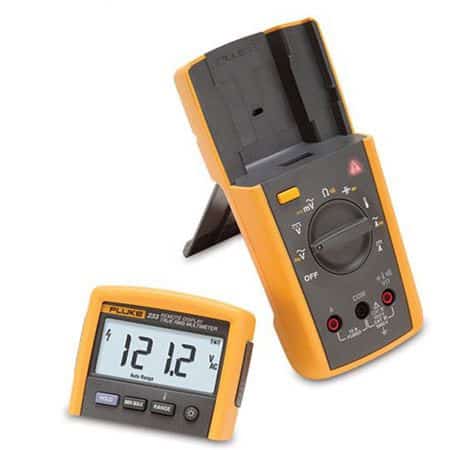

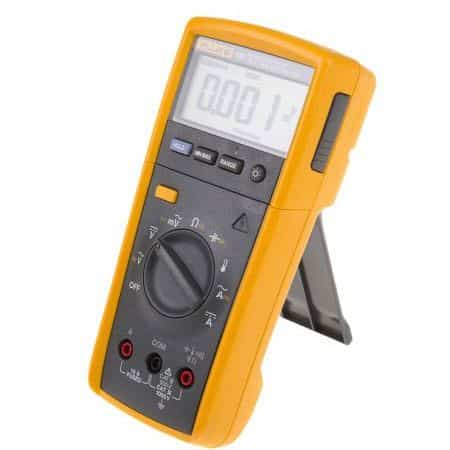

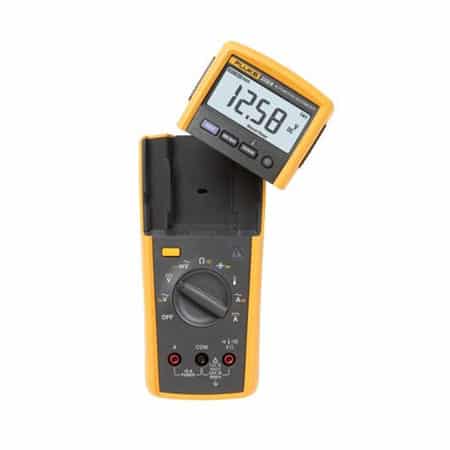

Fluke 233 Digital Multimeter with remote display gives you ultimate flexibility in tough measurement situations

The Fluke 233 digital multimeter with remote display allows you to be in two places at once. The removable display solves the problems of holding both the meter and the test leads to make a measurement, making measurements in hard-to-reach places, and making measurements in machines or panels that are physically separated from a limit switch or an isolator switch. Wireless technology allows the display to be carried up to 10 meters away from the point of measurement. The Fluke 233 is also designed to work in areas where the operator can’t be close to the active measurement point, like clean rooms or hazardous areas. Plus, it features True RMS AC voltage and current for accurate measurements on non-linear signals.

Other useful features:

– Provides a 10,000 μF capacitance range
– Measures frequency to 50 kHz
– Includes a built-in thermometer to measure temperature without a separate instrument
– Radio transmitter automatically turns off the when the display is connected to the meter so you can use it as a conventional multimeter
– Easy to read display with large digits and bright backlight
– Delivers approximately 400 hours of battery life
– Offers resistance, continuity, and diode test
– Features a removable magnetic display that can be conveniently mounted where it can be easily seen
– Low power wireless technology allows the display to be moved up to 10 meters (33 ft.) away from the point of measurement, without causing measurement interference
– Allows you to take measurements without holding the meter, to improve visual focus on probes and augment safe electrical measurements
– Provides auto power-off to maximize battery life
– Features Min/Max, and Average recording to capture variations automatically

Key features: Fluke 233

The Fluke 233 digital multimeter with its removable display gives you the flexibility to take measurements in hard to reach places or in areas with restricted access.

– True RMS with detachable display
– Measures up to 1000 VAC and DC
– Measures up to 10 A (20 A for 30 seconds)
