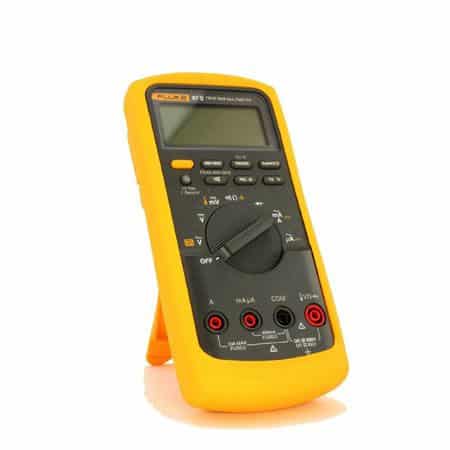

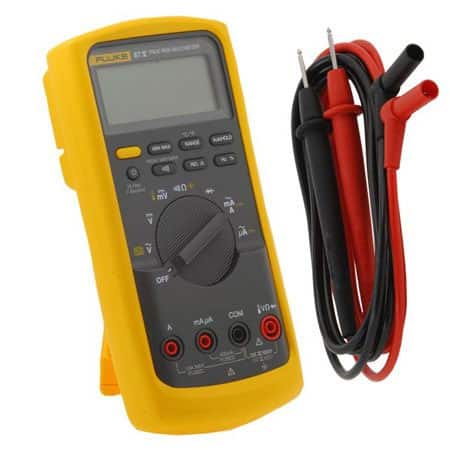

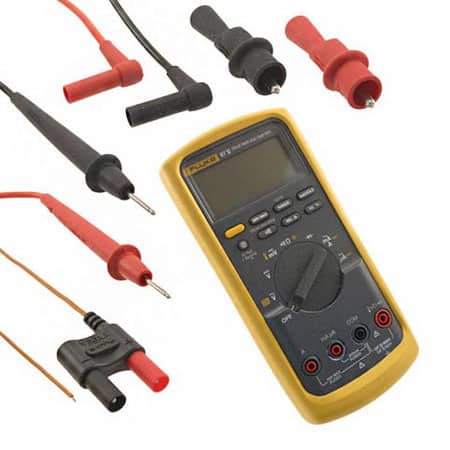

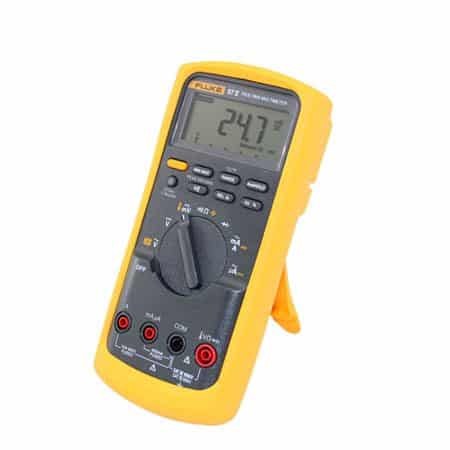

FLUKE 87V True RMS INDUSTRIAL MULTIMETER

0 customer reviews Sold: 0

View details

₹0.00

Key Features

Safer and rugged: Safety rated CAT III 1000 V, CAT IV 600 V
Accurate: Measure current, voltage and frequency on complex variable frequency drive (VFD) signals
This electrical multimeter correctly measure pulse-width modulated motor drive signals
Save time: The 87V multimeter includes a built-in thermometer and temperature probe
True-RMS AC voltage and current for measuring non-linear signals

Add to cart

Buy Now

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “FLUKE 87V True RMS INDUSTRIAL MULTIMETER”

Category: Measuring Equipment

Product Description

Specifications Fluke 87V True RMS Industrial Multimeter

Voltage DC

Maximum voltage: 1000 V

Accuracy: ±(0.05% + 1)

Maximum resolution: 10 µV

Voltage AC

Maximum voltage: 1000 V

Accuracy: ±(0.7% + 2) True RMS

AC bandwidth: 20 kHz with low pass filter; 3 db @ 1 kHz

Maximum resolution: 0.1 mV

Current DC

Maximum amps: 10 A (20 A for 30 seconds maximum)

Amps accuracy: ±(0.2% + 2)

Maximum resolution: 0.01 µA

Current AC

Maximum amps: 10 A (20 A for 30 seconds maximum)

Amps accuracy: ±(1.0% + 2) True RMS

Maximum resolution: 0.1 µA

Resistance

Maximum resistance: 50 MΩ

Accuracy: ±(0.2% + 1)

Maximum resolution: 0.1 Ω

Capacitance

Maximum capacitance: 9,999 µF

Accuracy: ±(1% + 2)

Maximum resolution: 0.01 nF

Frequency

Maximum frequency: 200 kHz

Accuracy: ±(0.005% + 1)

Maximum resolution: 0.01 Hz

Duty cycle

Maximum duty cycle: 99.9%

Accuracy: ±(0.2% per khz + 0.1%)

Maximum resolution: 0.1%

Temperature measurement

–200.0 °C – 1090 °C
–328.0 °F – 1994.0 °F
excluding probe

80 BK temperature probe

–40.0 °C – 260 °C
–40.0 °F – 500 °F, 2.2 °C or 2% whichever is greater

Conductance

Maximum conductance: 60.00 nS

Accuracy: ±(1.0% + 10)

Maximum resolution: 0.01 nS

Diode

Range: 3 V

Resolution: 1 mV

Accuracy: ±(2% + 1)

Duty cycle range

Accuracy: Within ±(0.2% per kHz + 0.1%)

Environmental Specifications

Operating temperature: –20 °C to + 55 °C

Storage temperature: –40 °C to + 60 °C

Humidity (without condensation): 0% – 90% (0 °C – 35 °C). 0% – 70% (35 °C – 55 °C)

Operating Altitude: 2000 m

Safety Specifications

Overvoltage category: EN 61010–1 to 1000 V CAT III, 600V CAT IV

Agency approvals: UL, CSA, TÜV, VDE listed

Mechanical and General Specifications

Size: 201 x 98 x 52 mm (with holster)

Weight: 355 g.

624 g – with holster

Display

+ Digital:6000 counts updates 4/sec. 19,999 counts in high–resolution mode

+ Analog: 32 segments, updates 40/sec

+ Frequency: 19,999 counts, updates 3/sec at > 10 Hz

Warranty: Lifetime

Battery Life: Alkaline. ~400 hours typical, without backlight

Shock: 1 Meter drop per IEC 61010–1:2001

Vibration: Per MIL–PRF–28800 for a Class 2 instrument

Introduction Fluke 87V True RMS Industrial Multimeter

The Fluke 87V True RMS Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations.

This digital multimeter takes the guesswork out of drive system troubleshooting. This electrical multimeter includes a unique function for accurately measuring noisy at the VFD and at the motor terminals. Special shielding blocks high frequency, high-energy noise generated by large drive systems.The Fluke 80 Series V of digital multimeters have improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electro-mechanical equipment.

Other useful features

– Rugged, high accuracy industrial electrical multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
– Offers true-RMS AC voltage and current for measuring non-linear signals
– Captures intermittents as short as 250 µS
– Safety rated CAT III 1000 V, CAT IV 600 V
– Includes a built-in thermometer and temperature probe

Applications

For Application engineer / Plant engineer / Industrial electricians (Working with VSD’s) / Electrical engineer. In plant automation, Power distribution, Electro-mechanical equipment, Industrial electronics, Setting up / repairing, adjustable speed motor drives.

Key Features

The Fluke 87V industrial digital multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment.

– Safer and rugged: Safety rated CAT III 1000 V, CAT IV 600 V
– Accurate: Measure current, voltage and frequency on complex variable frequency drive (VFD) signals
– This electrical multimeter correctly measure pulse-width modulated motor drive signals
– Save time: The 87V multimeter includes a built-in thermometer and temperature probe
– True-RMS AC voltage and current for measuring non-linear signals
