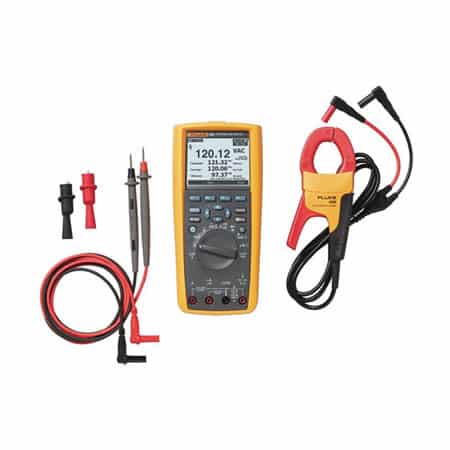

FLUKE 289/FVF (FLUKEVIEW FORMS COMBO KIT)

Introduction Fluke 289/FVF

Maximize productivity with the combined Fluke 289 and FlukeView Forms Combo Kit. With built-in data logger and TrendCapture capability, the 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms soft- ware allows you to overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring. Turn your data into meaningful graphs and tables for a professional report or analyze individual readings or series of measurements. The 289/FVF combo kit gives you a practical and affordable approach to predictive maintenance.

Functions and Features

Multiple on-screen displays: Yes

LoZ: Yes

50 ohm range: Yes

Filter for measure- ments on motor drives: Yes

True-rms ac band- width: 100 kHz

DBV/dBm: Yes

DC mV resolution: 1 μV

Megohm range: 500 MW

Conductance: 50.00 nS

Continuity beeper: Yes

Temperature (°C and °F): -200 °C to 1350 °C

Battery/fuse access: Yes/Yes

Elapse time clock: Yes

Time of day clock: Yes

Min-Max-Avg: Yes

Frequency: Yes

Duty cycle/pulse width: Yes

Info button on board help: Yes

Hold: Yes

Isolated optical interface: Yes

Auto/touch hold: Yes

Reading memory: Yes

Log to PC: Yes

On board logging with TrendCapture: Yes

Logging memory (Fluke 289): 180 hours
